All-in-One Power Solution

Online UPS + Lithium-ion batteries + Solar charging + Remote monitoring perfect for home use and small businesses.

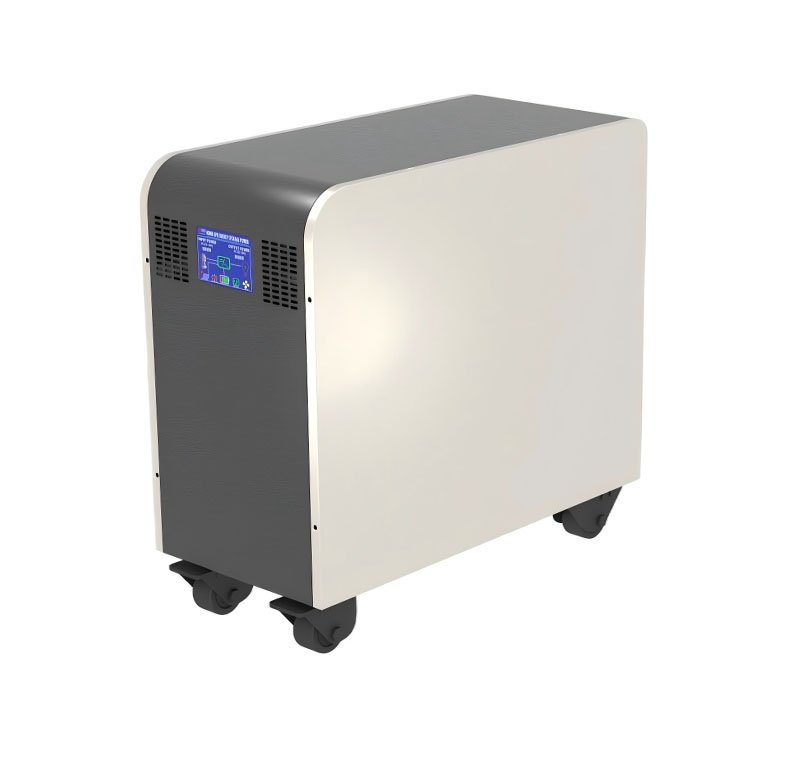

p1 (2)

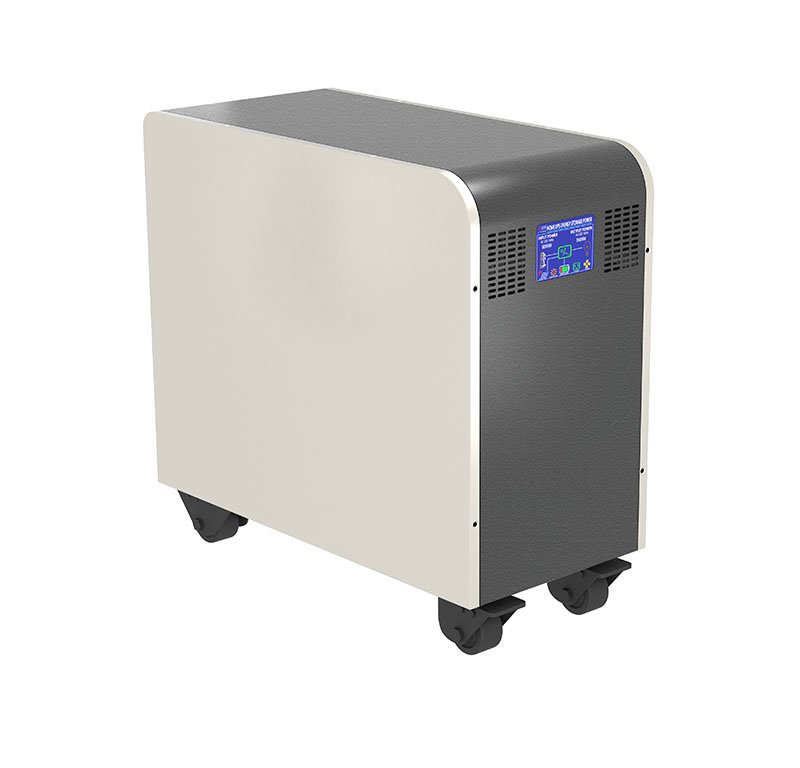

p1 (3)

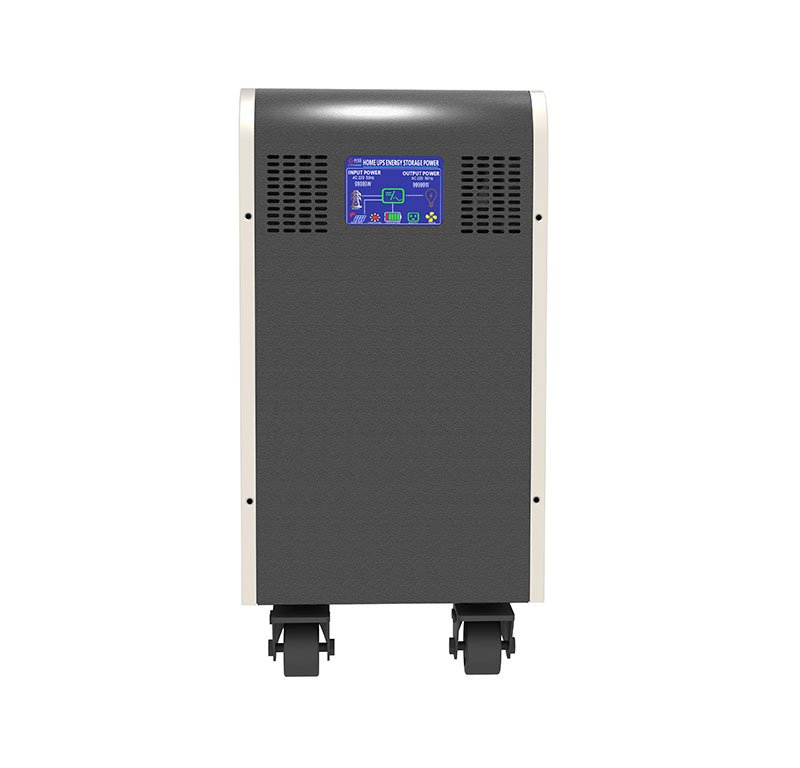

p1 (4)

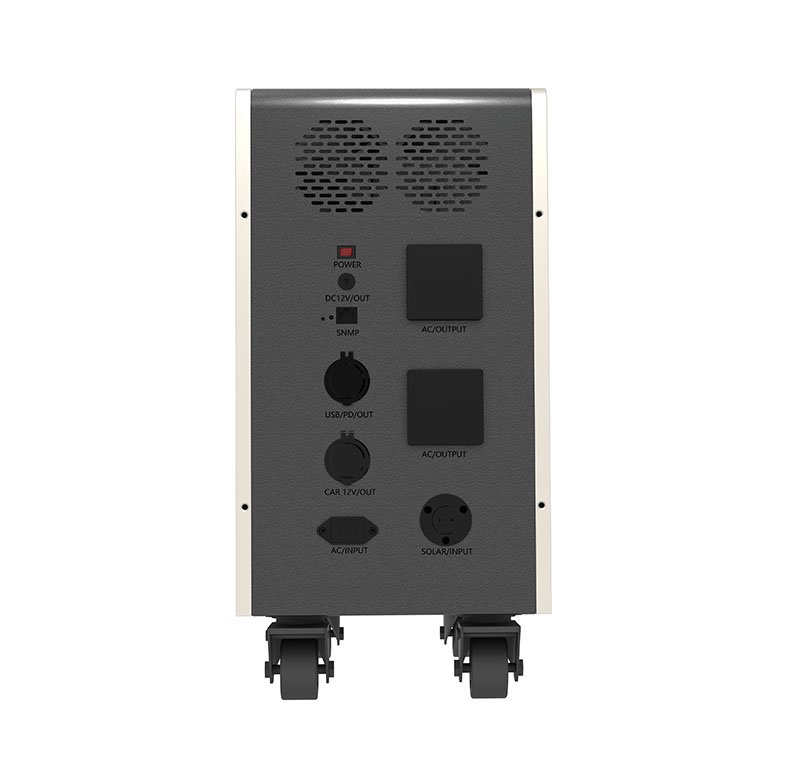

p1 (1)

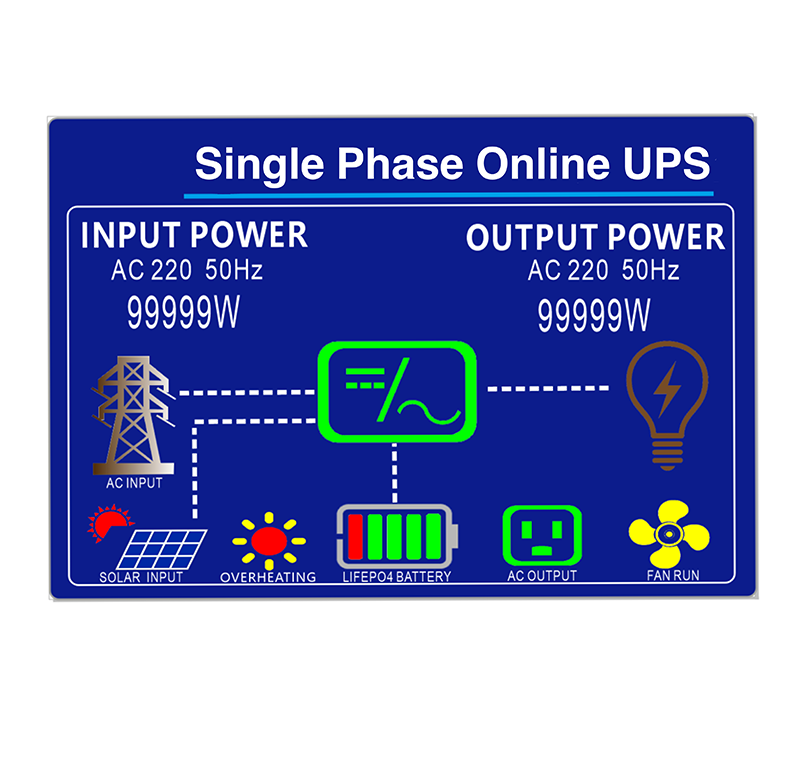

画板 8
Key Features:
  1. True Online Double Conversion (0 ms Switching):
    The UPS provides constant power with no delay when the grid power fails, so our devices continue running.
  1. Wide Input Voltage (85V – 310V):
    Works in areas with unstable power. This wide range protects your equipment  from voltage spikes or drops.
  1. Wide Frequency Range (35Hz – 200Hz):
    Ensures your system stays stable, even when the frequency of the power supply changes.
  1. Built-in LiFePO4 Battery:
    Long-lasting battery that ensures reliable power for many years(2000 cycles with ≥ 80% capacity).
  1. Solar Charging Support (Up to 3,600W):
    Easily connect solar panels to create your own independent solar system, reducing reliance on the grid and lowering electricity costs
  1. Remote Monitoring (SNMP / Web / App):
    Access your UPS system remotely via a web browser, smartphone app, or network management software.
Working ModeParametersUnitYT-3KV -AYT-3KV -BYT-6KV -AYT-6KV -BYT-6KV -CYT-9KV -AYT-9KV -BYT-9KV -CYT-12KV -AYT-12KV -BYT-12KV -C
AC InputInput VoltageV85 ~ 310
Input FrequencyHz35 ~ 200
Max Input PowerW3,2006,4008,80012,000
Online PowerW2,4004,8007,2009,600
Charging PowerW6801,3601,3601,360
Charging Timeh574.48.312.35.510.515.76.712.919.1
Solar InputCharging MethodMPPT
Input Voltage RangeW60 ~ 100
Max charging PowerW2400360024003600
Charging Timeh1.221.534.523.95.82.44.77
AC OutputOutput VoltageV220 V ±1%
Output FrequencyHZ50 HZ ±1%
Rated PowerW2,4004,8007,2009,600
Peak PowerW4,8009,60015,00020,000
Output power
protection		W2,6005,0007,4009,800
Output Wave formPure sine wave
DC OutputUSB18W*2
TYPE C60W*1
DC 12V100W*1
Network InterfaceEthernet SNMPWeb-based or App, remote control and data transmission
Operating temperature range0℃ ~ +55℃
BatteryPackBattery TypeLithium Iron Phosphate (LiFePO4), 33140，Cylindrical
Battery CycleLife2000 times ≧80% capacity
Battery CapacityWh3,0724,6085,37610,75216,1286,91213,82420,7368,44816,89625,344
Battery
Management		BMS Hardware + Software Protection
Protected FunctionShort circuit, Overvoltage, Undervoltage, Overload, Overcurrent, Temperature protection
Online / Interactive ModeTransfer Time: 0 ms
During voltage and frequency fluctuationsResponse Time: 0 ms
Enclosure MaterialPainted sheet metal
Dimensions (W × D×H)cm53x26x5271x32x6982x35x6974x45x69
Net WeightKg3645546974649211484109134
Gross WeightKg4049597479709611889114138
